Terra Forma®
Lehmsteine
The right stone for every construction project.
Information:
This type of construction is a centuries-old technique that is known in many parts of the world.
The stones are mortared together with clay mortar.
By installing dry stones, the drying time is reduced, for example for half-timbered walls.
Field of use:
- For partition walls in post and beam construction
- For non-load-bearing walls
- Ceiling construction between/on the beams.
- For infills of the half-timbered fields
- Masonry of clay ovens, pizza ovens
Formats:
- The dimensions are given in length x width x height cm.
Information:
Clay bricks for load-bearing masonry or in half-timbered constructions.
The stones are bricked together with clay mortar.
By installing dry stones, the drying time is reduced, for example for half-timbered walls.
Another possibility is the stacking technique in a wooden construction
Field of use:
- For partition walls in stud construction
- For non-load-bearing walls and load-bearing walls
- Ceiling construction between/on the beams.
- For infills of the half-timbered fields
- Masonry of clay ovens, pizza ovens
Formats:
- The dimensions are given in length x width x height cm.
Terra Forma®
Lehmsteine
Terraforma®
Solid clay brick NF
Information:
Sound insulation
- By installing it in wooden beam ceilings, the structure-borne and impact sound is significantly improved.
Heat storage
- Due to its compactness, it stores heat excellently and is therefore ideal for building clay ovens, base ovens and underfloor heating.
Field of use:
- for bricklaying basic ovens, pizza ovens
- for laying in earth cellars
- for bricking up timber frame walls indoors
- for laying out in slide-in ceilings
- NF 24.0 x 11.5 x 7.1 cm
- Bulk density 1.8 -2.0
Format:
Information:
Sound insulation
- By installing it in wooden beam ceilings, the structure-borne and impact sound is significantly improved.
Heat storage
- Due to its compactness, it stores heat excellently and is therefore ideal for building clay ovens, base ovens and underfloor heating.
Field of use:
- for bricklaying basic ovens, pizza ovens
- for laying in earth cellars
- for bricking up timber frame walls
- for laying out in slide-in ceilings
- for load-bearing masonry
Format:
- NF 24.0 x 11.5 x 7.1 cm
- Bulk density 1.8 -2.0
Terraforma®
Solid clay brick NF
Terraforma®
Lightweight clay brick 2 DF
Information:
For bricking up half-timbered houses, wooden structures and pre-masonry to create interior insulation for particularly uneven exterior walls. The aggregate is hemp and flax fibers
Format:
2 DF 24.0 x 11.5 x 11.3 cm
Bulk density 1.2-1.4
Terraforma®
Lightweight clay brick 2 DF
Information:
For bricking up half-timbered houses, wooden structures and pre-masonry to create interior insulation for particularly uneven exterior walls. The aggregate is hemp and flax fibers
Format:
- 2 DF 24.0 x 11.5 x 11.3 cm
- Bulk density 1.2-1.4
Terraforma®
Lightweight clay brick 2 DF
Information:
As pre-masonry for the production of internal insulation, brick lining or stacking in wooden frames.
Format:
- 2 DF 24.0 x 11.5 x 11.3 cm
- Bulk density 0.9-1.0
Information:
As pre-masonry for the production of interior insulation, brick lining or stacking
in wooden stand.
Format:
2 DF 24.0 x 11.5 x 11.3 cm
Density 1.2
Terraforma®
Lightweight clay brick 2 DF

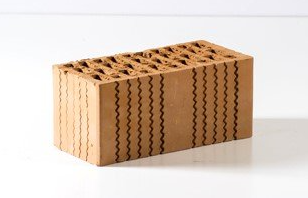

Terra Forma®
Lehmstein 2 DF 15%
Information:
- with a small number of holes for indoor use.
- Offers excellent impact and structure-borne sound insulation, lining of wooden compartments in interior areas, interior walls e.g. as sound insulation, inlay in wooden beam ceilings, as floor covering for earth cellars, production of clay ovens, basic ovens.
- 15% means = 15% hole share
Format:
- 2 DF 24.0 x 11.5 x 11.3 cm
- Density 1.8
Terra Forma®
Lehmstein 2 DF 15%
Terra Forma®
Lehmstein 2 DF 15%
Information:
- with a small number of holes for indoor use.
- Offers excellent impact and structure-borne sound insulation, lining of wooden compartments in interior areas, interior walls e.g. as sound insulation, inlay in wooden beam ceilings, as floor covering for earth cellars, production of clay ovens, basic ovens.
- 15% means = 15% hole share
Format:
- 2 DF 24.0 x 11.5 x 11.3 cm
- Density 1.8
Terra Forma®
Lehmstein 2 DF 15%
Terra Forma®
Lehmstein 2 DF 15%
Information:
with a small number of holes for indoor and outdoor use.
Offers excellent impact and structure-borne sound, lining of wooden compartments
Sound insulation for installation in wooden beam ceilings, floor covering for underground cellars
Manufacture of clay ovens, basic ovens.
15% means = 15% hole share
Format:
2 DF 24.0 x 11.5 x 11.3 cm
Density 1.8

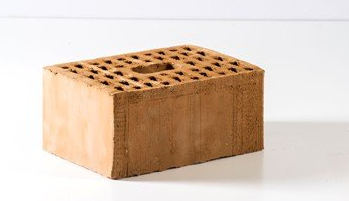

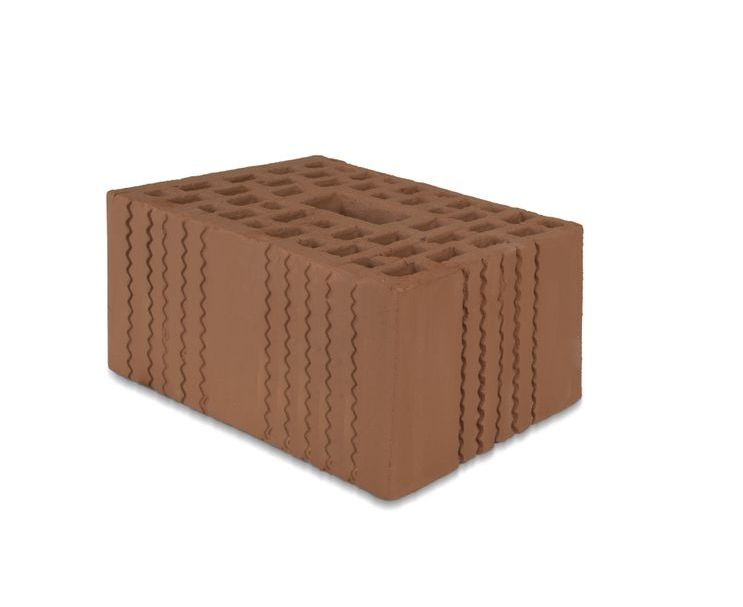

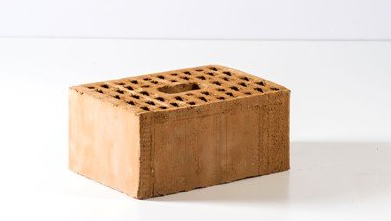

Terraforma®
Lightweight clay brick 3 DF
Information:
- As pre-walling for interior insulation
- Infilling of stud walls
- Design of clay masonry walls
Format:
- 3 DF 24.0 x 17.5 x 11.3 cm
- Bulk density 1.0-1.2
Information:
- As pre-walling for interior insulation
- Infilling of stud walls
- Design of clay masonry walls
Format:
- 3 DF 24.0 x 17.5 x 11.3 cm
- Bulk density 1.0-1.2
Terraforma®
Lightweight clay brick 3 DF
Terraforma®
Lightweight clay brick 3 DF
Information:
- As pre-walling for interior insulation
- Infilling of stud walls
- Design of clay masonry walls
Format:
3 DF 24.0 x 17.5 x 11.3 cm
Density 1.0-1.2
Terraforma®
Lightweight clay brick 3 DF

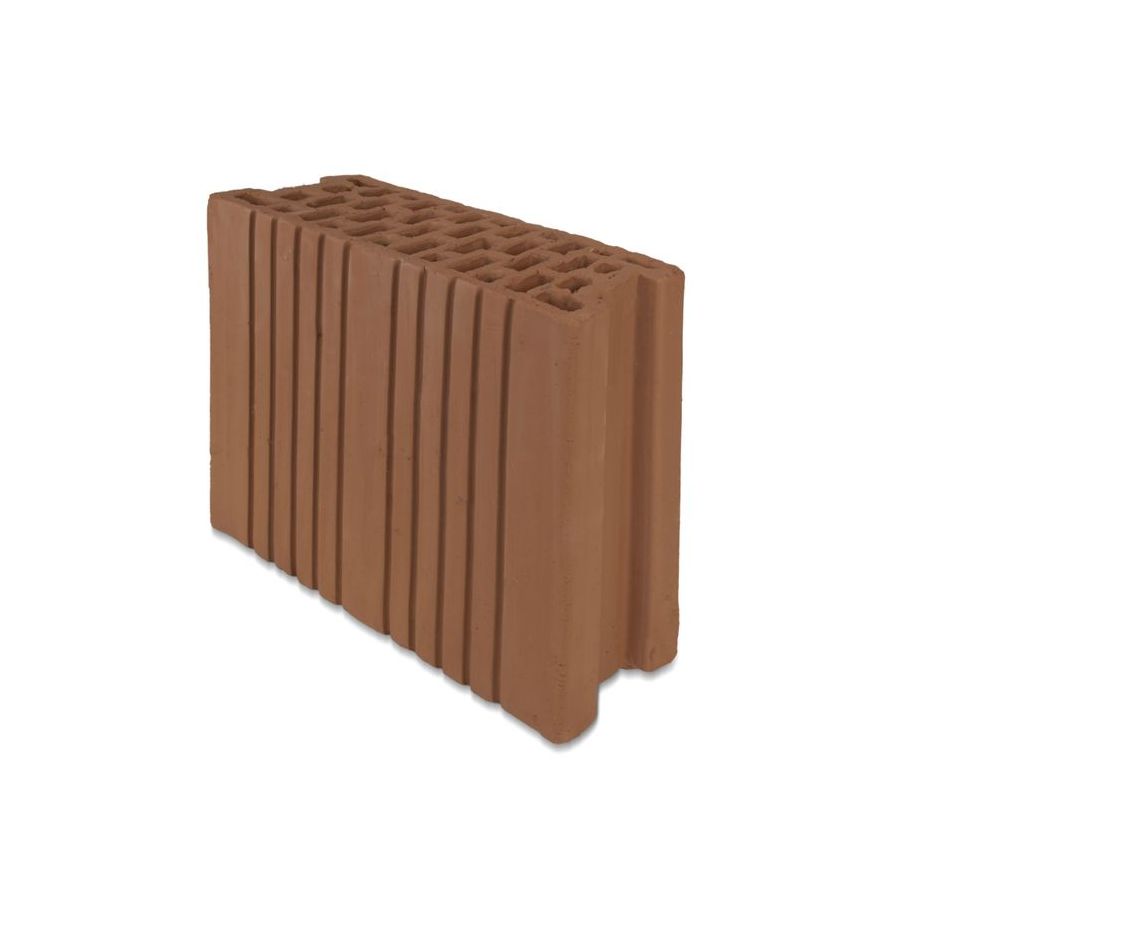

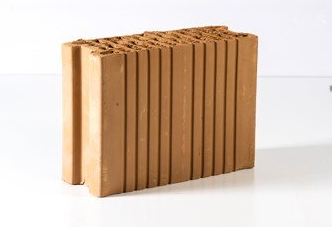

Terraforma
Lightweight clay brick 5 DF
Information:
- As pre-walling for interior insulation
- For infilling stud walls indoors
- Masonry of partition walls
Format:
- 5 DF 30.0 x 11.5 x 23.8 cm
- Density 1.2
Terraforma
Lightweight clay brick 5 DF
TerraForma®
Lightweight clay brick 5 DF
Information:
- As pre-walling for interior insulation
- For infilling stud walls indoors
- Masonry of partition walls
Format:
- 5 DF 30.0 x 11.5 x 23.8 cm
- Density 1.2
Terraforma
Lightweight clay brick 5 DF
Terraforma
Lightweight clay brick 5 DF
