TerraForma®

Rammed earth

The right stone for every construction project.

TerraForma®

Rammed earth

Anappealing design options

Information:

Rammed earth is one of the oldest clay building techniques. Due to its artistic expressiveness and, above all, sustainable properties, this technique is experiencing a comeback.

Rammed earth consists of building clay and additives such as sand, gravel or chippings. By using different colored sands and clay, each rammed wall becomes unique.

Rammed earth as a wall construction.

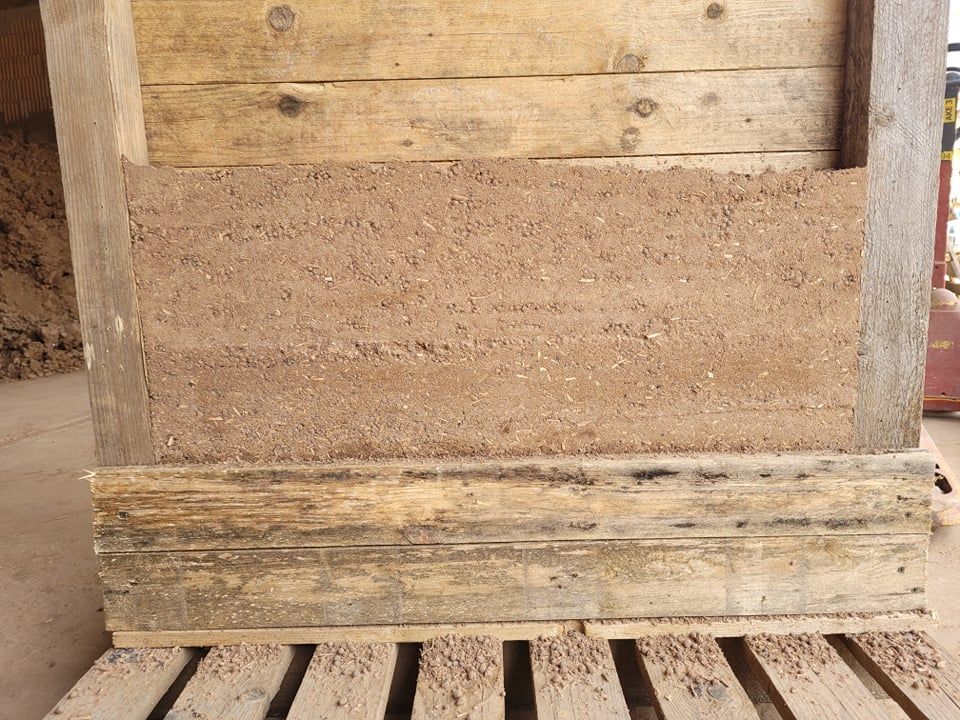

Wall: The clay is placed in layers, approximately 10-15 cm thick, in a suitable formwork and mechanically compacted. Commercially available large-area formwork systems and slip formwork, such as those used in concrete construction, can be used as formwork. Manual tamping devices, but also electric or pneumatic compactors can be used to compact the clay layers.

Rammed earth is also used in flooring.


Information:
Stacked earth is one of the oldest clay building techniques. Due to its artistic expressiveness and its excellent indoor climate properties, this technique is experiencing a comeback.
Rammed earth consists of granular to stony building clay as well as mineral additives such as coarse sand, gravel and chippings.
Rammed earth as a wall construction.
Wall: it is placed in layers, in layers of approx. 10-15 cm, in a suitable formwork and compacted mechanically. Commercially available large-area formwork systems and slip formwork, such as those used in concrete construction, can be used as formwork. Manual tamping devices, but also electric or pneumatic compactors can be used to compact the clay layers.

TerraForma®

Rammed earth

Terraforma®

Rammed earth

Terraforma®

Rammed earth

Application:

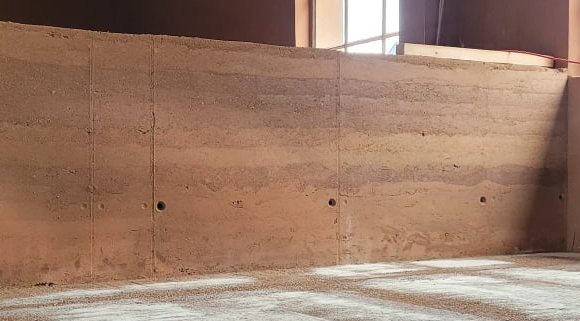

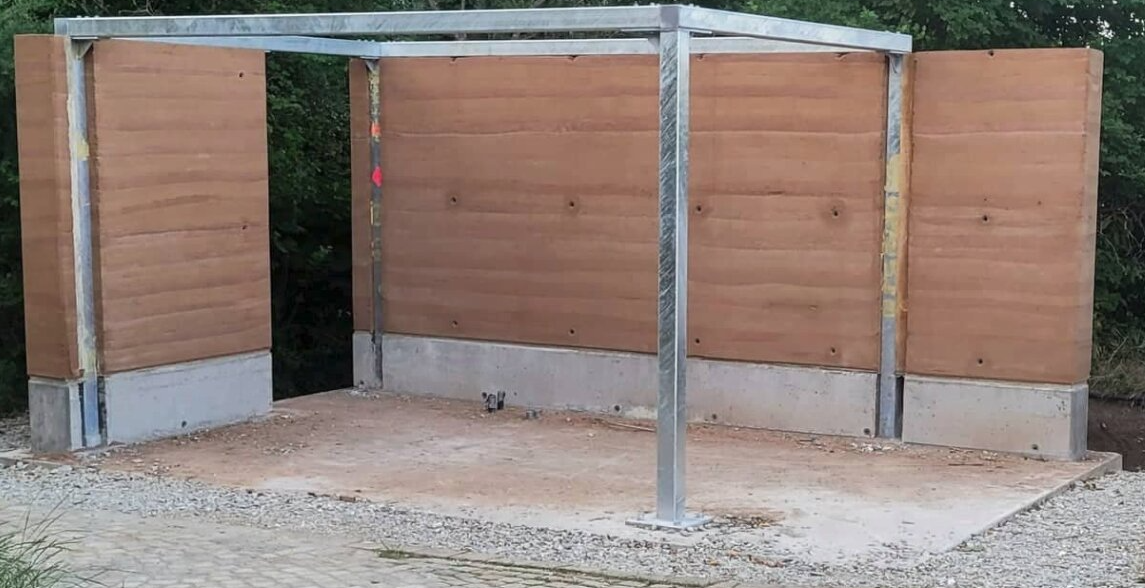

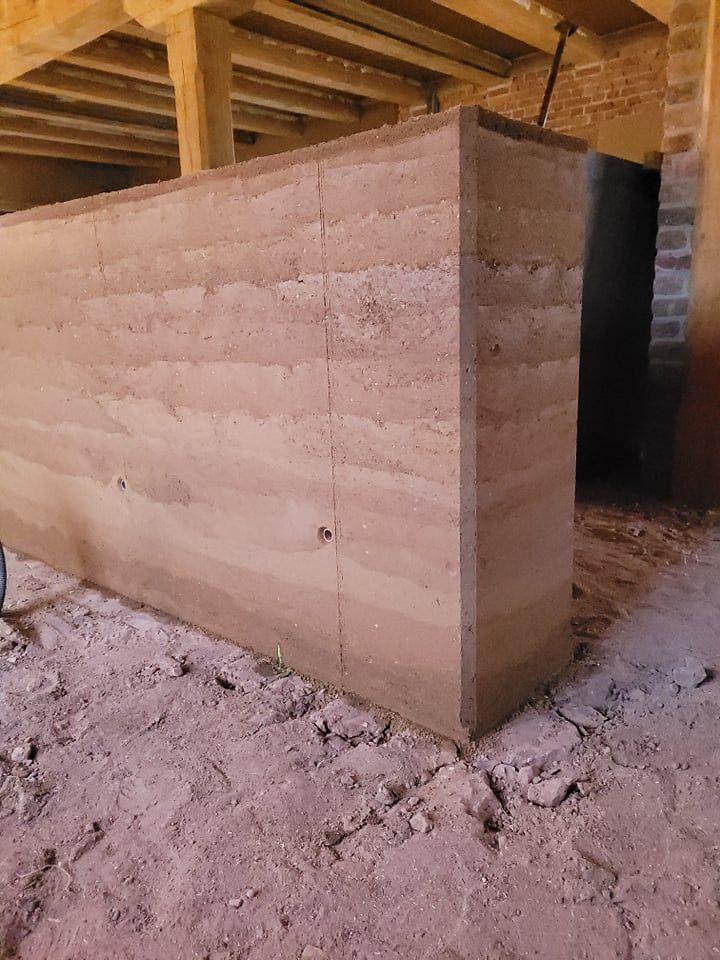

  • Solid masonry for indoor and outdoor use


Due to our humid climate, external walls must be additionally protected against rising moisture from the building ground (capillary effect) as well as moisture penetrating from above.

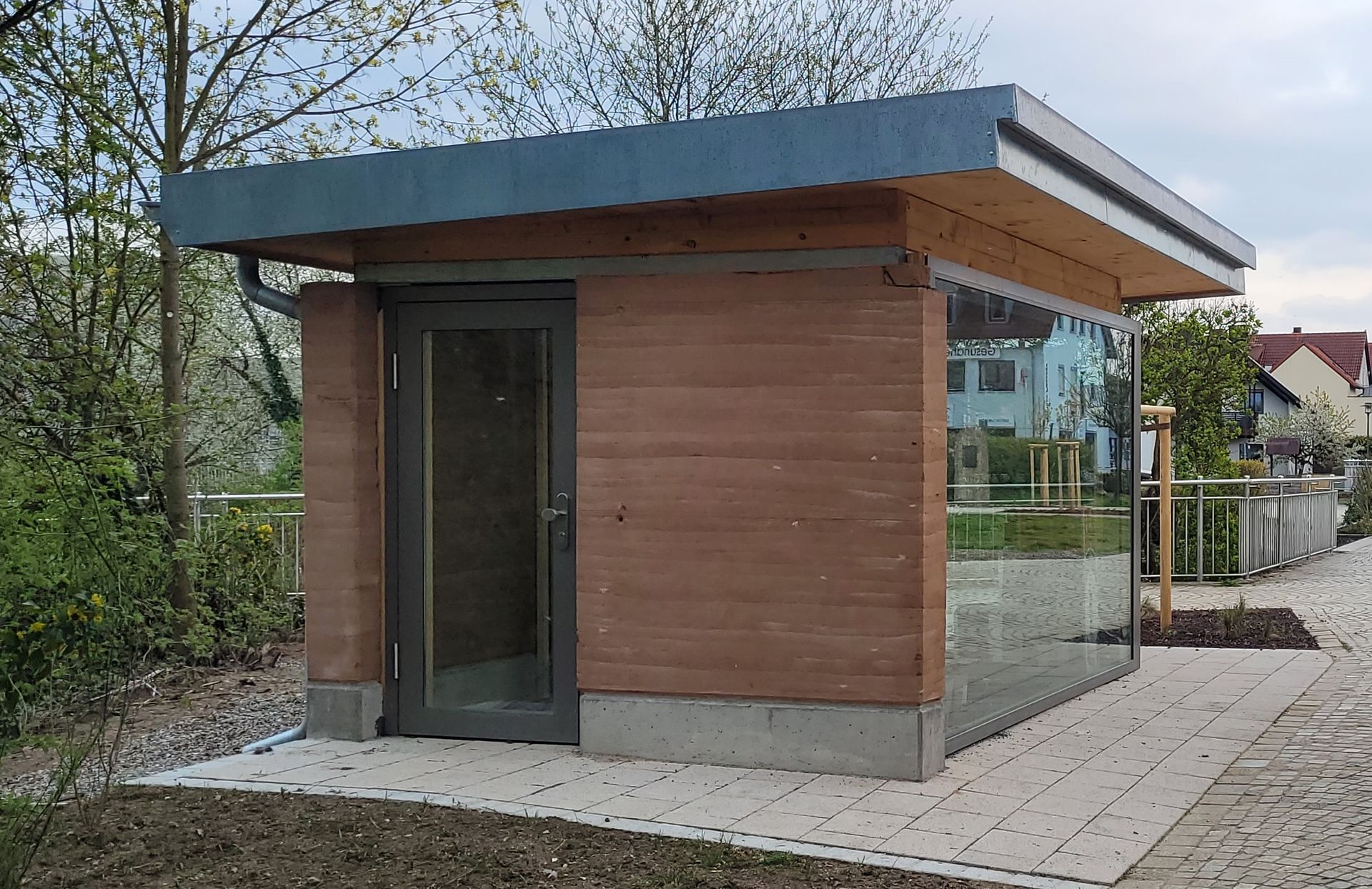

(Picture Energy Pavilion Hirschaid)

Terraforma®

Rammed earth

Application:
Solid masonry inside and outside

Due to our humid climate, external walls must be additionally protected against rising moisture from the building ground (capillary effect) and moisture penetrating from above.

Terraforma®

Rammed earth

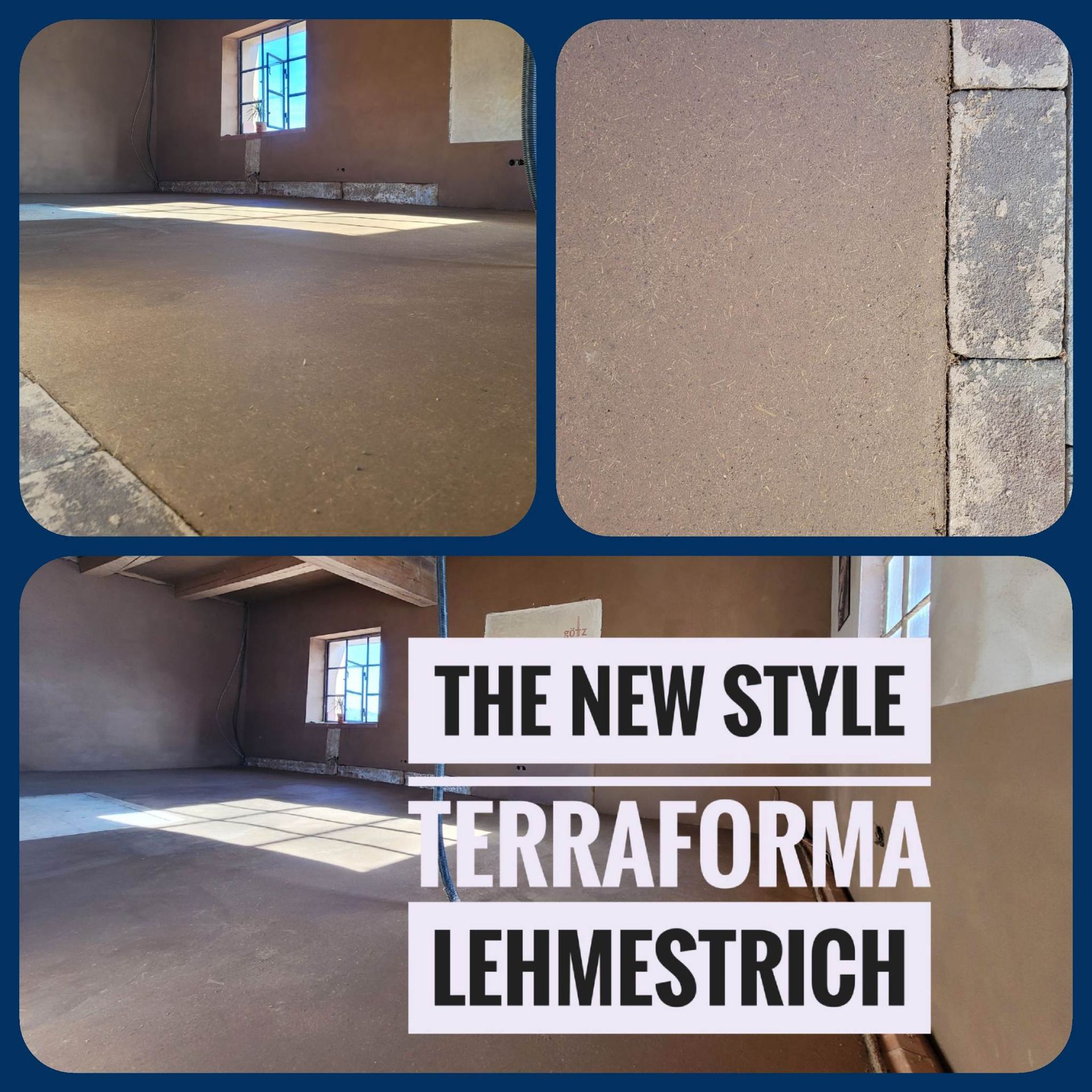

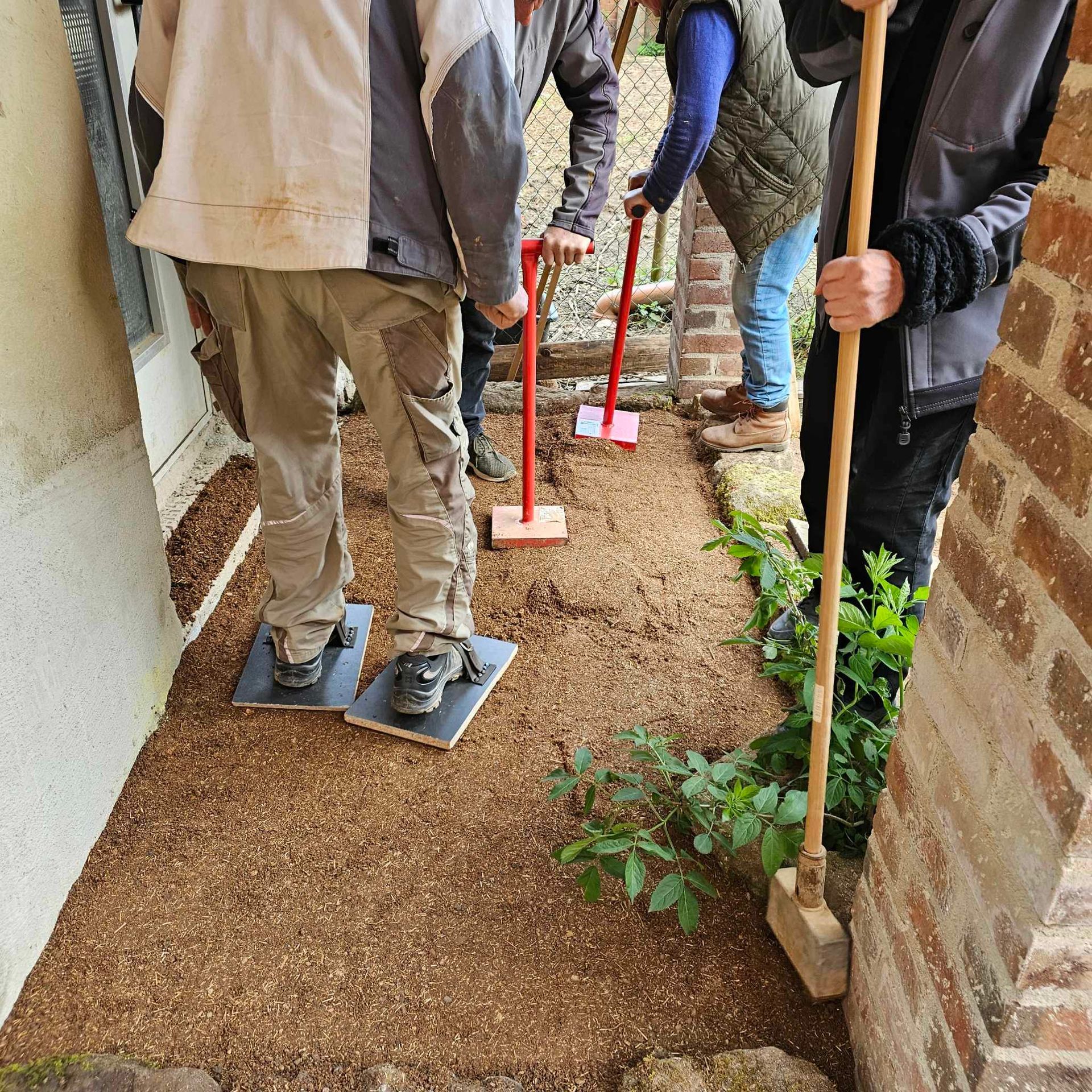

Application:
  • with underfloor heating
  • as design flooring
  • as clay screed

Rammed earth floors can also be used in covered outdoor areas.

Terraforma®

Rammed earth as flooring
